Product Description

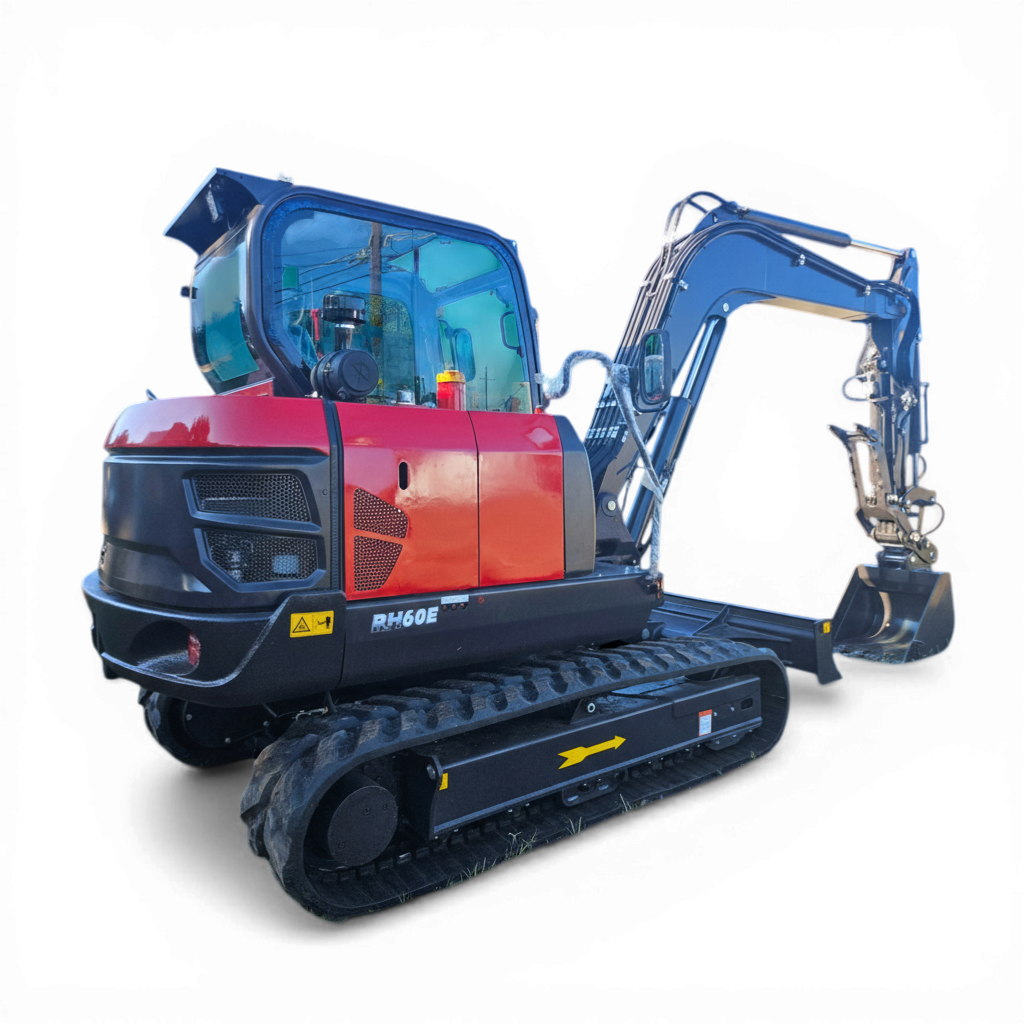

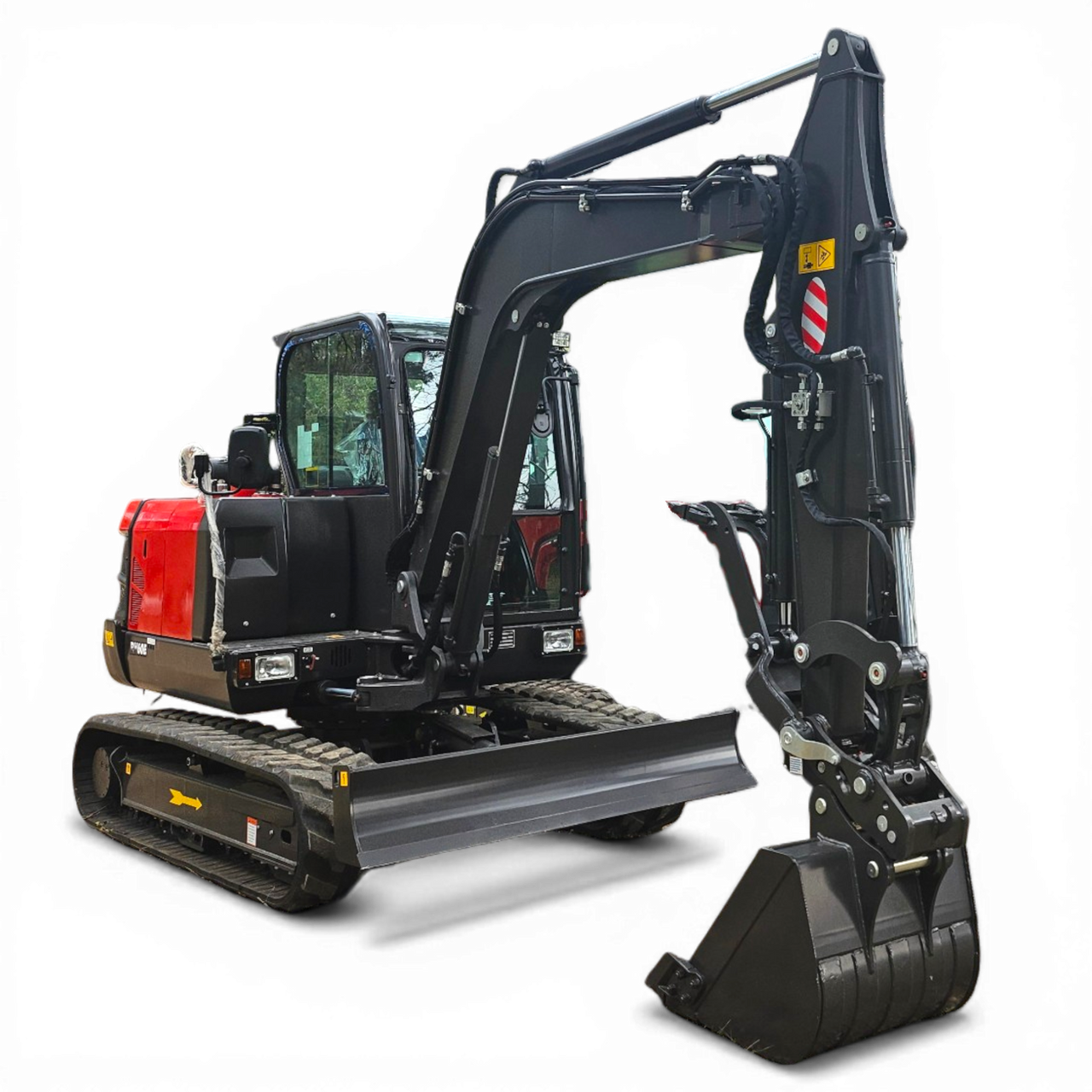

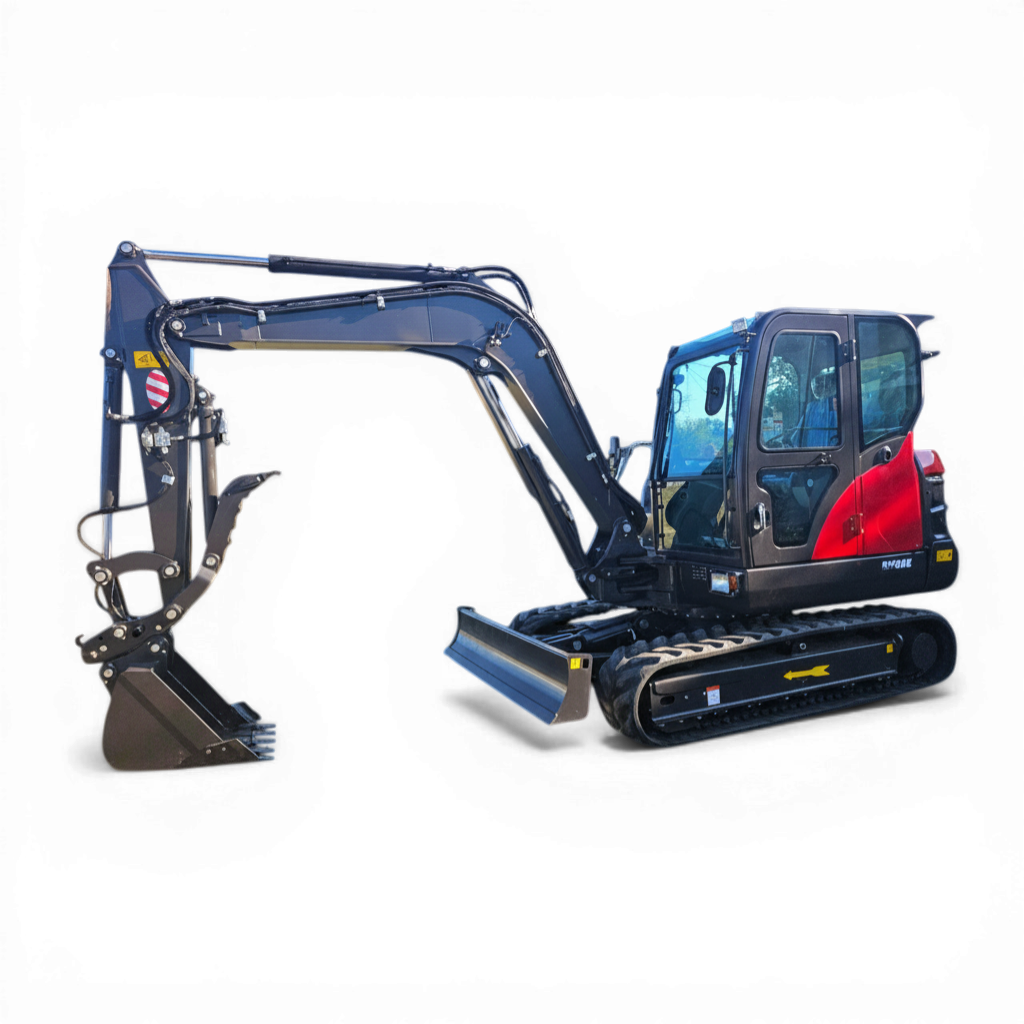

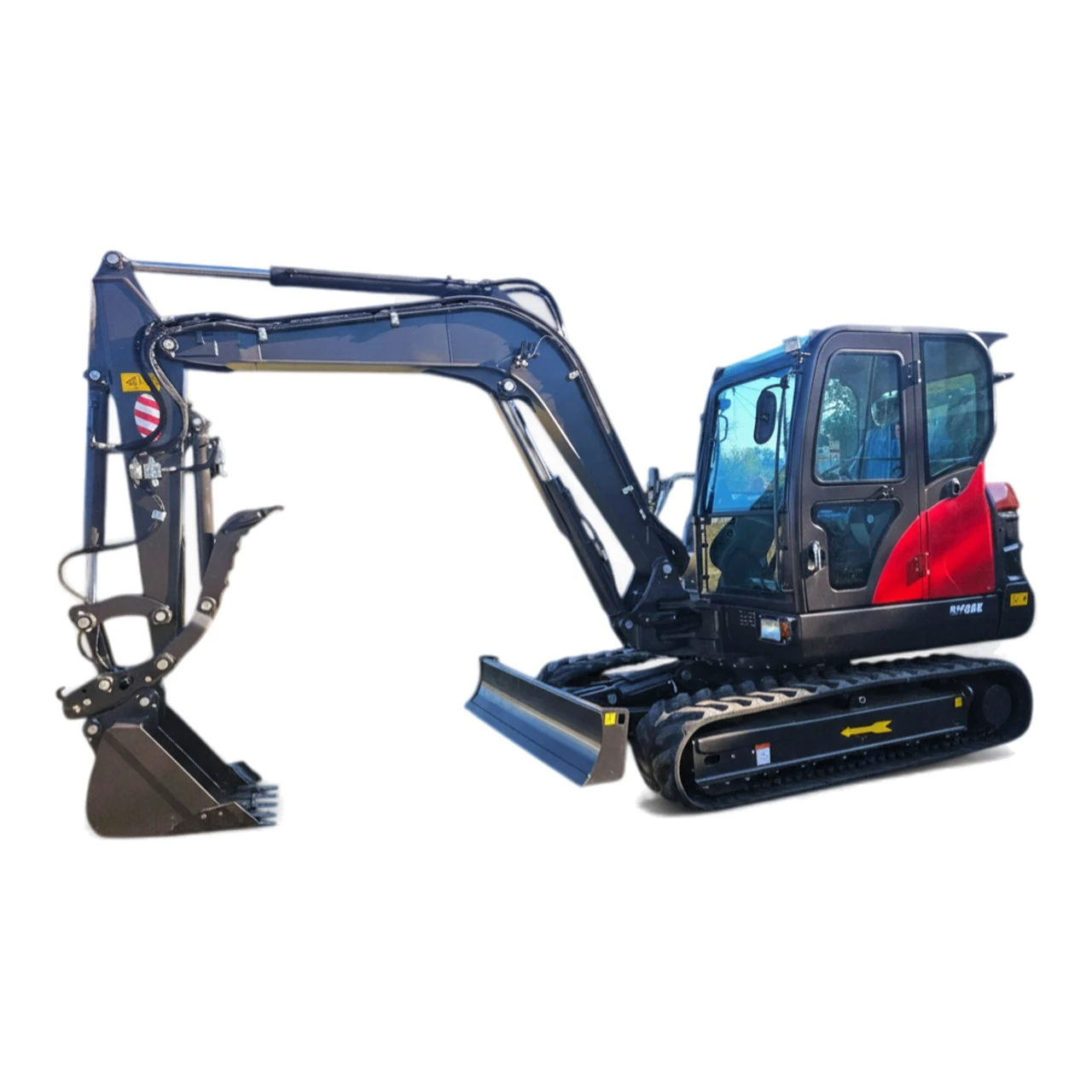

The RH60E is a compact, versatile mini excavator engineered for precision digging and material handling in confined spaces. Powered by a reliable Yanmar 4TNV98 diesel engine delivering 59.53 hp at 2200 rpm, this machine combines efficiency with robust performance. With an operating weight of 5,500 kg (12,125 lbs), the RH60E achieves an impressive maximum digging depth of 3,800 mm (12 ft 6 in) and a maximum digging radius of 6,135 mm, making it ideal for landscaping, utility work, and construction projects.
The machine features an advanced load-sensing hydraulic system operating at 25 MPa with a flow rate of 43 gal/min, ensuring smooth and responsive operation across all functions. Equipped with pilot controls, a swing boom, and a hydraulic quick hitch with thumb attachment, the RH60E offers exceptional maneuverability and attachment versatility. The ISO/SAE pattern quick hitch allows for rapid tool changes, maximizing productivity on job sites.

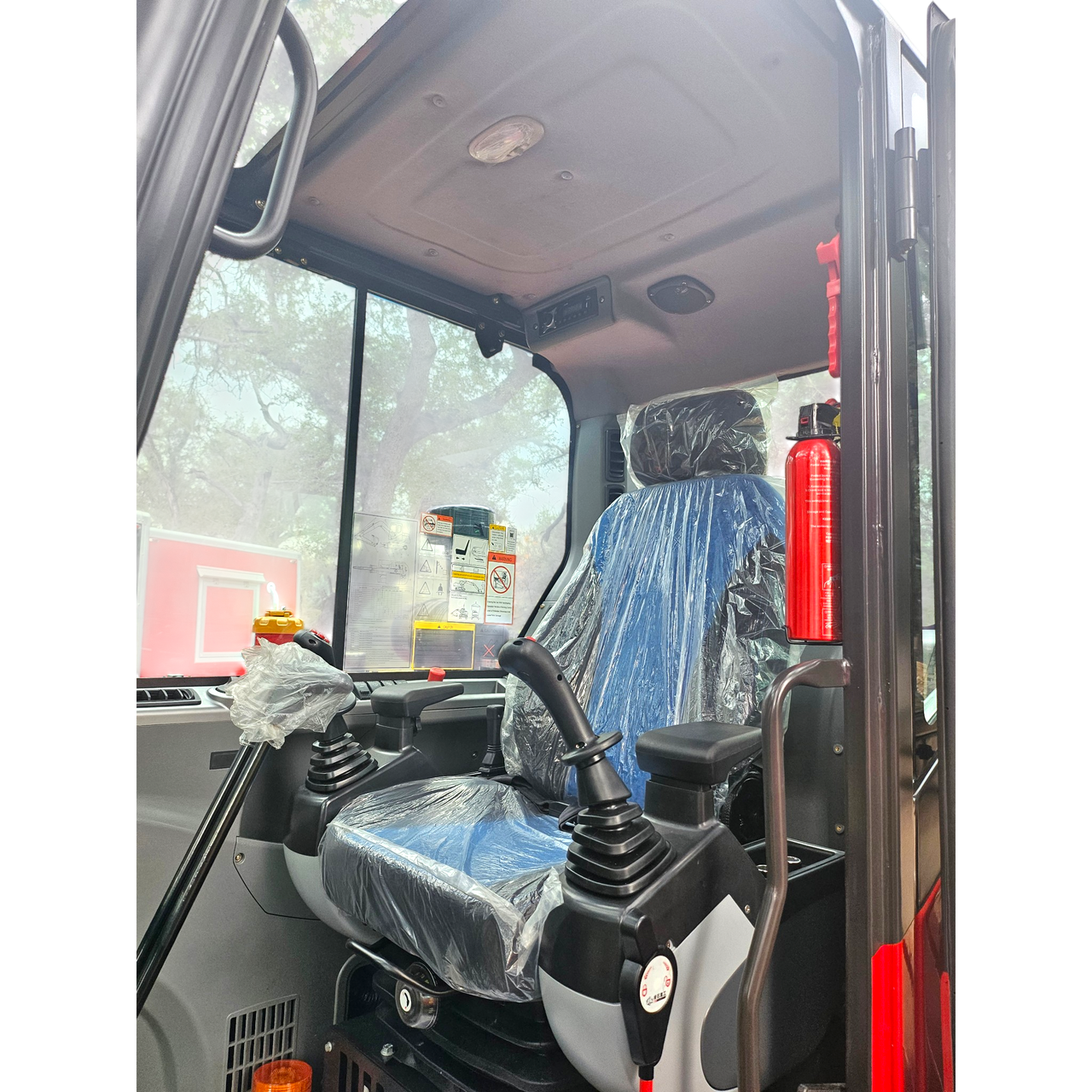

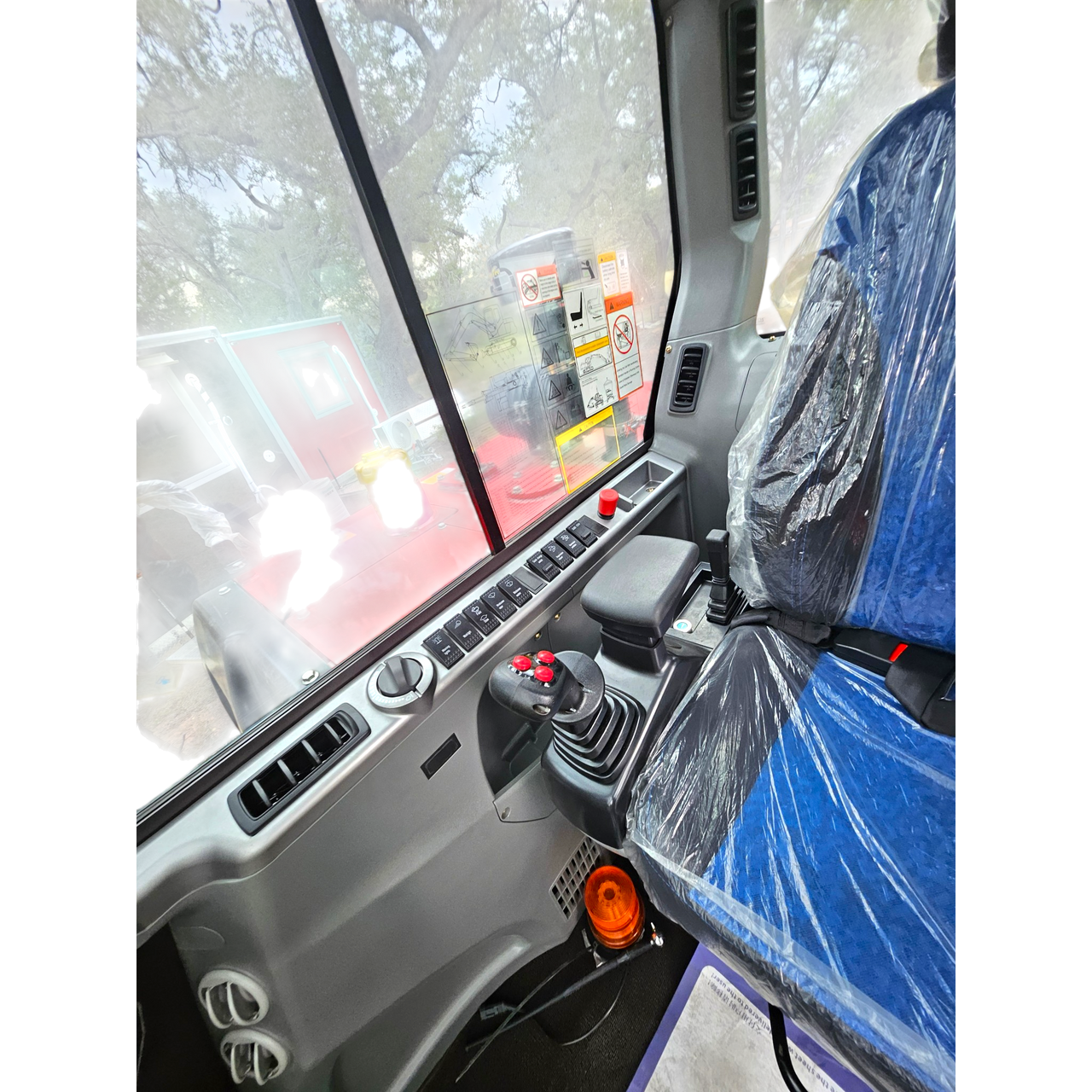

Operator comfort is prioritized with an air-conditioned and heated enclosed cab, providing a comfortable working environment in all weather conditions. The two-speed drive motor reaches a maximum travel speed of 5.5 km/h, while the 8 ft 3 in (2,540 mm) track length ensures excellent stability and traction on various terrains. With a maximum gradeability of 30°, the RH60E confidently tackles challenging slopes and uneven ground.
The hydraulic system incorporates premium components including EDDIE valves and pump, EATON swing motor, JINGKEN traveling motor, and HENGLI cylinders, ensuring durability and long service life. The piston pump technology delivers consistent power and precision, while load-sensing valves optimize fuel efficiency by adjusting pressure based on demand. Standard bucket capacity of 0.21 cbm (7.41 cu ft) and a 72-liter hydraulic oil tank support extended operational periods. With a 120-liter fuel tank and 12-liter engine oil capacity, the RH60E minimizes downtime and maximizes productivity on every project.
